ATS-EVO S Heavy Duty Safety Bolt for Thin Panel - Hex Head - ZINC CLEAR

The ATS-EVO heavy duty thin panel anchor by Friulsider is the ideal anchor for extreme load performance.

SAFE INSTALLATION: Optimal expansion guaranteed by the coupling of the cone and body.
UNIFORM EXPANSION: Single piece three expanding segments.
ANTI-ROTATION: The special bush shape prevents rotation.

The ATS-EVO Thin Panel version is suitable for use in both 125mm and 150mm Pre-cast concrete panels.

Features

• Designed for use in thin precast concrete panels

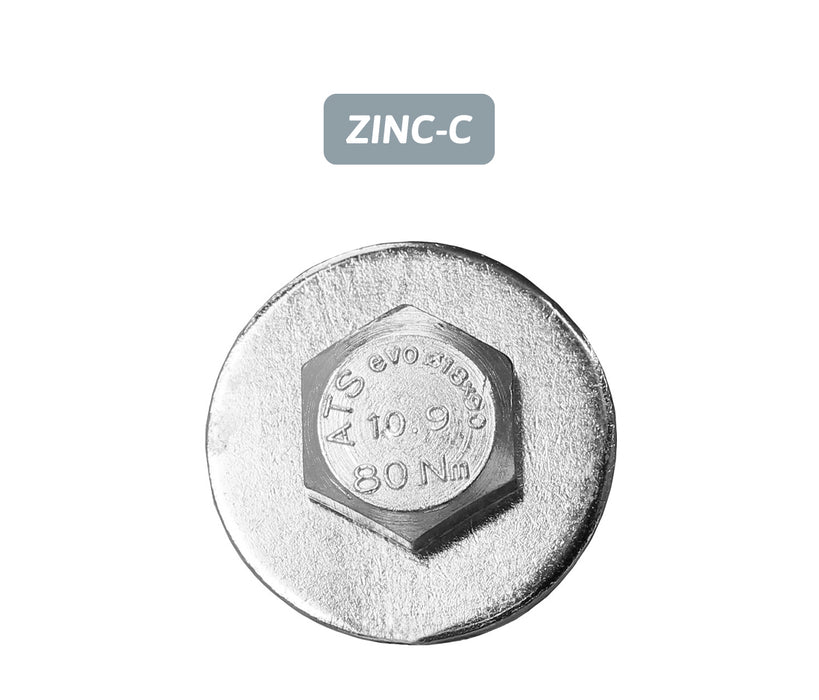

• M12 hex head class 10.9 bolt
• High strength large diameter structural washer (O.D. 44mm)
• Tested in Australian precast concrete
• Independently tested by Swinburne University of Technology (report ref.SSL18-10036)

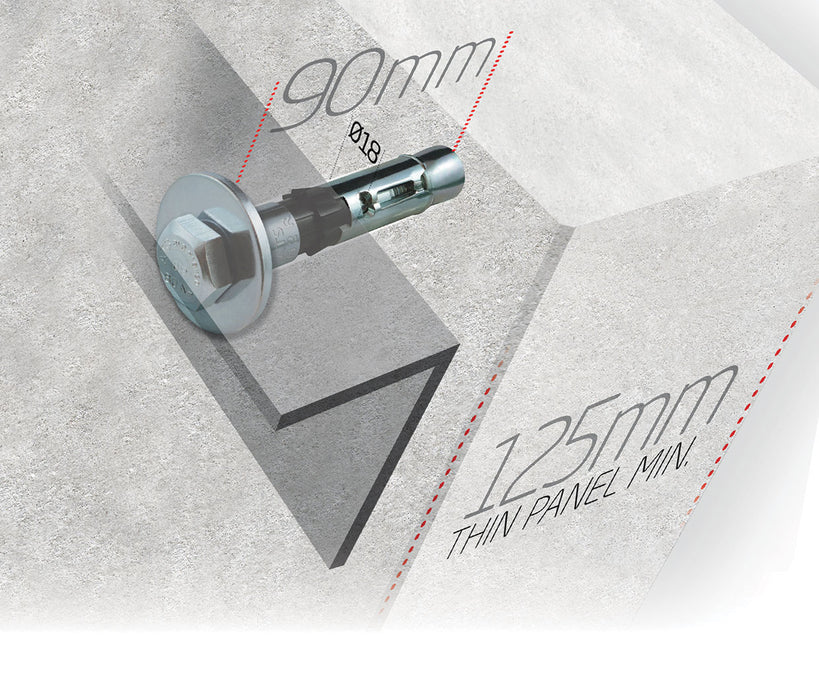

• Designed for minimum precast concrete panel thickness of 125mm
• Available in Zinc and 3DG corrosion resistant coating
