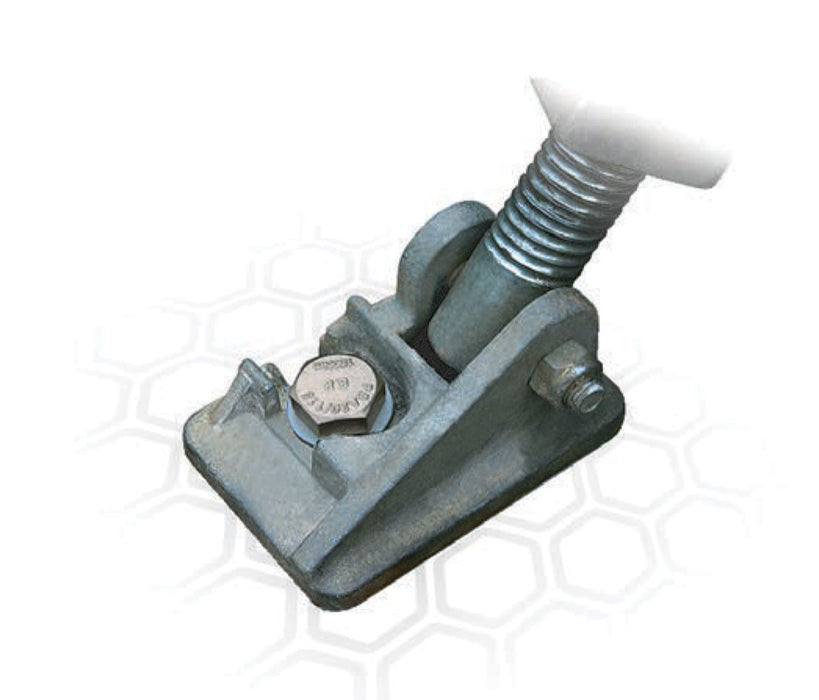

Heavy Duty Panel Brace Anchor - Carbon Steel 8.8 - ZINC CLEAR

Original price $136.13 - Original price $136.13
Original price
$136.13
$136.13 - $136.13
Current price $136.13
SKU PBA20115

______________________________________

Head type: HEX

Finish: ZINC CLEAR
______________________________________

Product Summary

Heavy-duty brace anchor for precast and tilt-up concrete wall panels. High load performance expansion anchor with high tensile and shear characteristics. Tested in accordance to AS3850.1:2015 and easily removable this anchor is specifically designed for the temporary fixture of precast and tilt-up concrete wall panels. Testing of the ICCONS® PBA20115 Panel Bracing Anchor has been conducted via an independent NATA accredited laboratory in accordance with clause A9 of AS 3850.1:2015. AS 3850:2003 was revised in 2015 and published as 3850 (Prefabricated concrete elements) Part 1 and 2. Part 1 - General requirements and Part 2 - Building construction. Testing of Brace inserts is covered in Appendix A9 of AS 3850.1:2015 and consists of a much more rigorous testing regime to that referenced in the previous AS 3850:2003. The new testing criteria assesses the performance of brace inserts for:

  • Static tension
  • Shear
  • Cyclic
  • Installation Torque

Features

  • Torque controlled expansion anchor
  • Engineered compression ring for fixture clamping effect
  • Optimum wedge geometry for high performance (low slip)
  • Tested in accordance with AS3850.1:2015
  • Class 8.8 bolt for high tensile and shear characteristics
  • Simple removal for temporary fixing

Applications

  • Precast and tilt-up concrete panel bracing
In stock
